Sectional Warp Beam - Leclerc

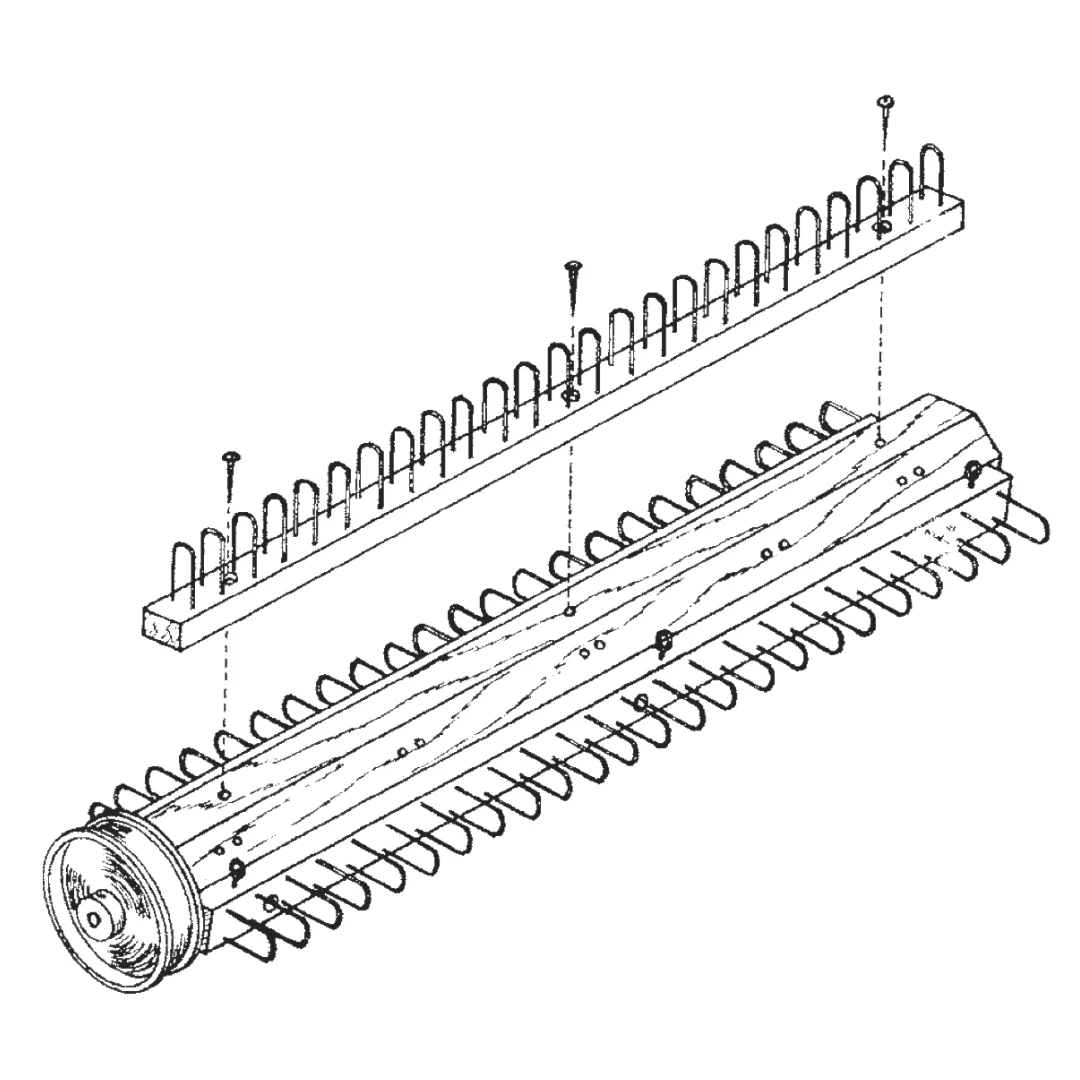

This system consists of 4 rake-like pieces that are attached to the plain beam on the loom or onto the double warp beam. It allows warp beaming 1" or 2" wide at a time and requires a number of spools according to the sett of warp ends.

A sectional warp beam is especially appreciated by the weaver without a helper since the warp can be beamed easily by one person.

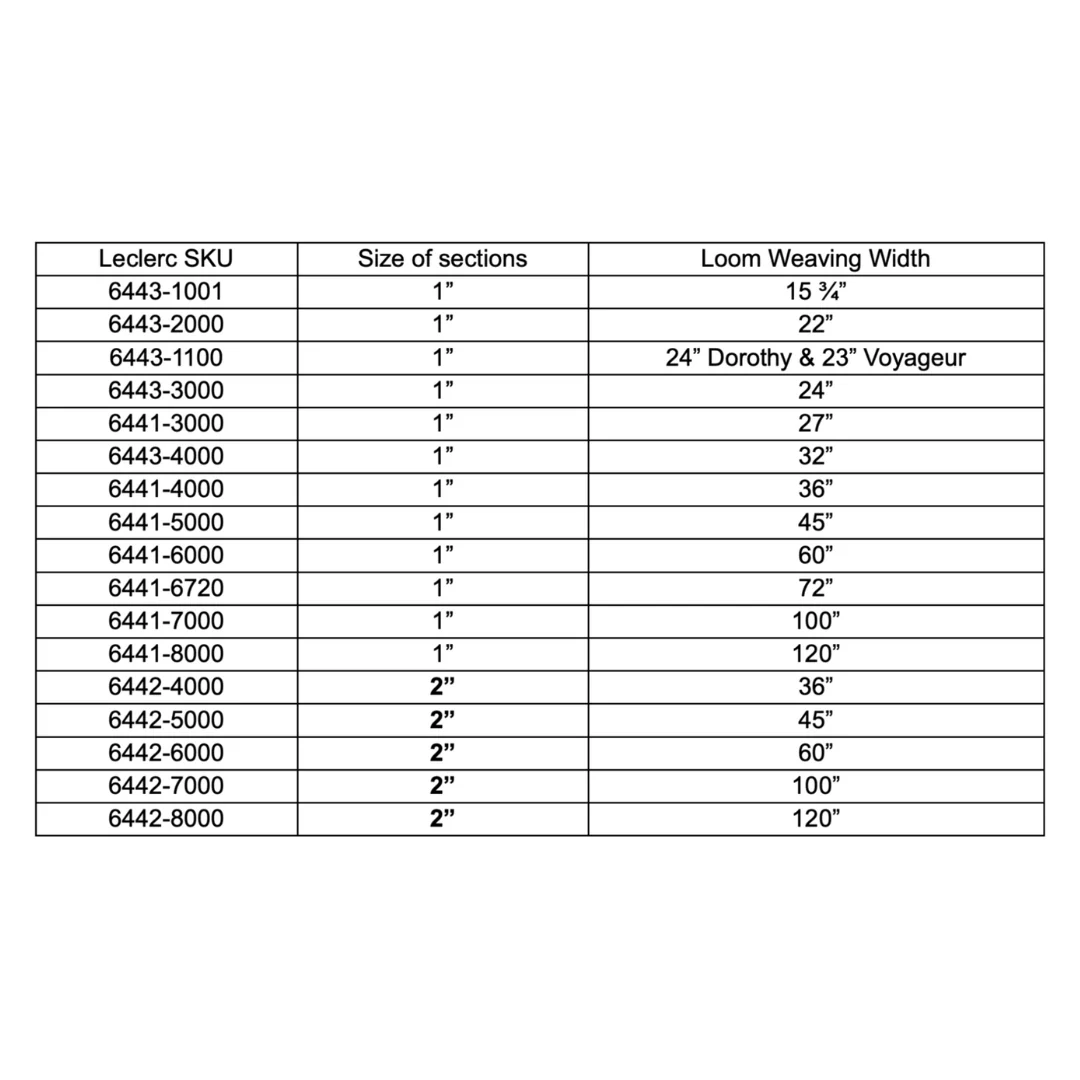

On the Dorothy and the Voyageur looms, the clamps are fixed directly on the beam; it holds 5” per turn. The Compact holds 15” per turn while on an Artistat on Inca, it holds 16” per rotation. On a Fanny, Mira, Nilus, Nilus II, Colonial I Kebec or Nilart, it holds 19” per rotation

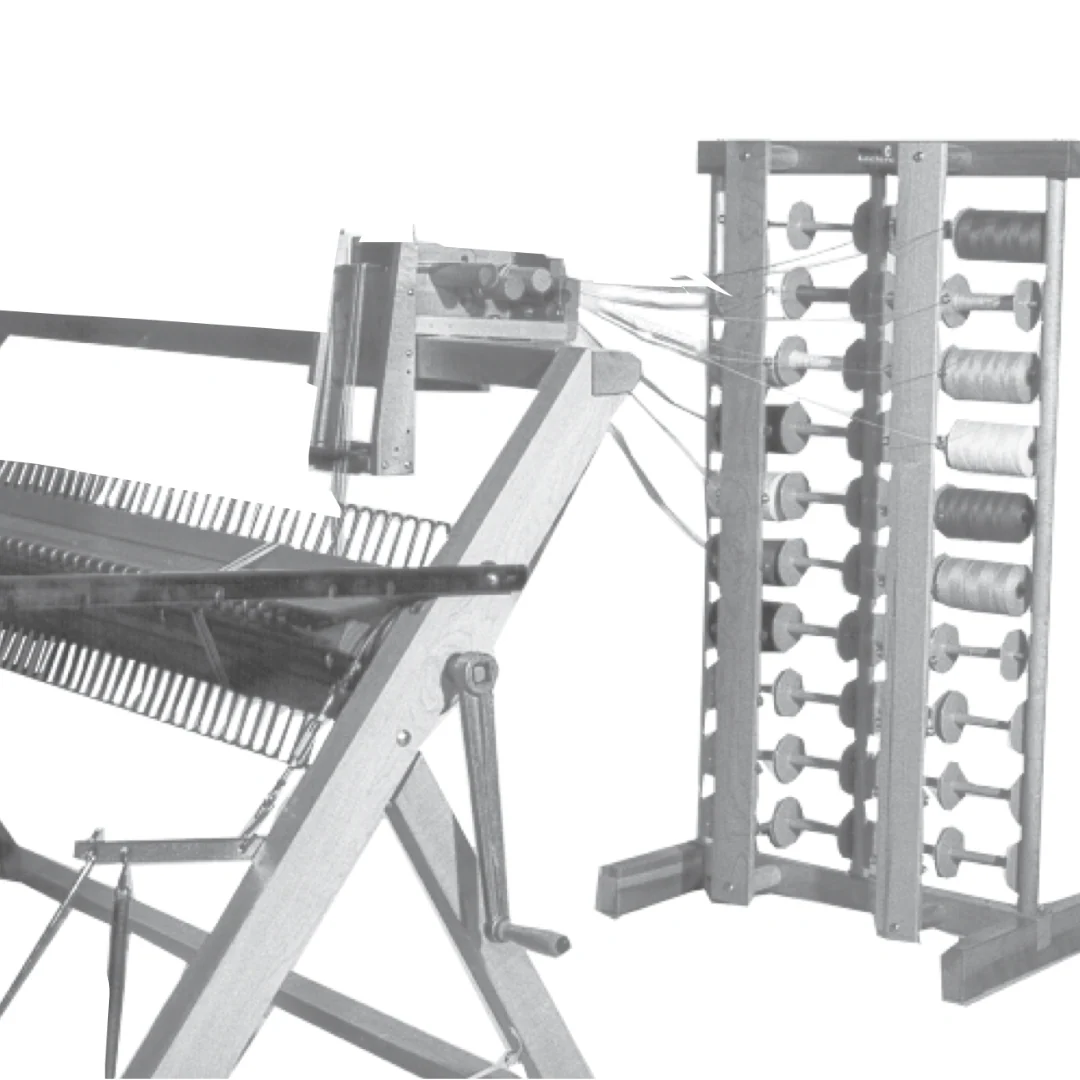

We have one of our studio looms set up with a sectional beam, and use it for very long warps (>20 yards). It holds tension well over long warps and speeds up warping and beaming, especially when working with fine thread.

FInd the Sectional Warp Beam Extension Kit here
Find the Sectional Warping Tools here

Please note this is a Special Order item – Allow 2-4 weeks for the item to ship. Special Order Items do not qualify for discounts, returns of refunds.
